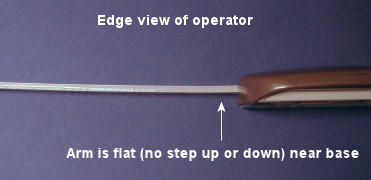

Truth Single Arm Operators with Flat Arm
Please measure and order carefully as all parts authorized for return will incur a 25% restocking fee
| These Operators are available in several different arm lengths and case styles below. |
|

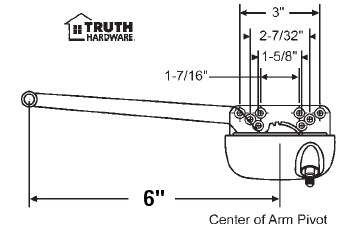

Truth Single Arm Operator with 6" Arm |
|

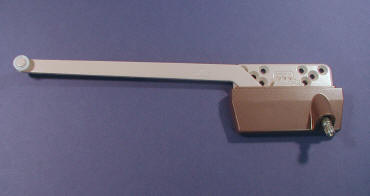

Traditional Style Case (available only while supplies last) |

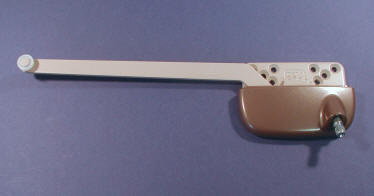

Ellipse Style Case |
 |
|
|
 |
or White
finish|
Please note: Truth Hardware has discontinued their 15 Series "Traditional Style Case" Window Operators. They can be replaced by the "Ellipse Style Case" which is a direct replacement. Only difference is the case design. Traditional Style Case are available only whiles supplies last. |
| Case Style | Color |
Version |
Item # |
Price (1-11) |
Price (12-up) |
Purchase On-line |
|---|---|---|---|---|---|---|
|
Traditional No Longer Available |
Bronze |
As Shown |
36-213-1 |
|
No Longer Available |
|
|
Traditional No Longer Available |
Bronze |
Opposite |
36-211-1 |
No Longer Available |
||
| Ellipse | Bronze | As Shown | 36-213-1E | $57.95 | Call | |
| Ellipse | Bronze | Opposite | 36-211-1E | $57.95 | Call | |
|
Traditional No Longer Available |
White | As Shown | 36-213-3 | No Longer Available | ||
|
Traditional No Longer Available |
White | Opposite | 36-211-3 | No Longer Available | ||
| Ellipse | White | As Shown | 36-213-3E | $57.95 | Call | |
| Ellipse | White | Opposite | 36-211-3E | $57.95 | Call |
|

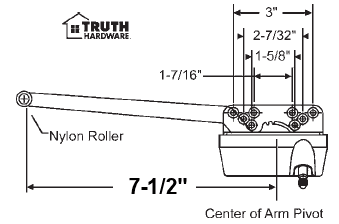

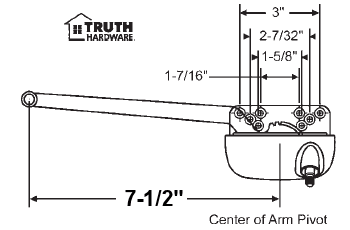

Truth Single Arm Operator with 7-1/2" Arm |
|
Traditional Style Case (available only while supplies last) |
Ellipse Style Case |
|
|
|
|
|
|
Please note: Truth Hardware has discontinued their 15 Series "Traditional Style Case" Window Operators. They can be replaced by the "Ellipse Style Case" which is a direct replacement. Only difference is the case design. Traditional Style Case are available only whiles supplies last. |
| Case Style | Color |
Version |
Item # |
Price (1-11) |
Price (12-up) |
Purchase On-line |
|---|---|---|---|---|---|---|
|
Traditional No Longer Available |
Bronze |
As Shown |
36-216-1 |
No Longer Available |
||
|
Traditional No Longer Available |
Bronze |
Opposite |
36-215-1 |
No Longer Available |
||
| Ellipse | Bronze | As Shown | 36-216-1E | $57.95 | ||
| Ellipse | Bronze | Opposite | 36-215-1E | $57.95 | ||
|
Traditional No Longer Available |
White | As Shown | 36-216-3 | No Longer Available | ||
|
Traditional No Longer Available |
White | Opposite | 36-215-3 | No Longer Available | ||
| Ellipse | White | As Shown | 36-216-3E | $57.95 | ||
| Ellipse | White | Opposite | 36-215-3E | $57.95 |
|

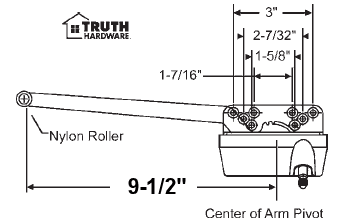

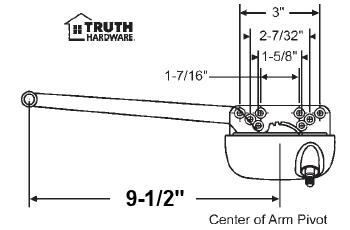

Truth Single Arm Operator with 9-1/2" Arm |
|
Traditional Style Case (available only while supplies last) |
Ellipse Style Case |
|
|
|
|
|
, or White
|
Please note: Truth Hardware has discontinued their 15 Series "Traditional Style Case" Window Operators. They can be replaced by the "Ellipse Style Case" which is a direct replacement. Only difference is the case design. Traditional Style Case are available only whiles supplies last. |
| Case Style | Color |
Version |
Item # |
Price (1-11) |
Price (12-up) |
Purchase On-line |
|---|---|---|---|---|---|---|
|
Traditional No Longer Available |
Bronze |
As Shown |
36-128-1 |
|
||
|
Traditional No Longer Available |
Bronze |
Opposite |
36-129-1 |
No Longer Available |
||
| Ellipse | Bronze | As Shown | 36-128-1E | $24.95 | $22.49 | |
| Ellipse | Bronze | Opposite | 36-129-1E | $24.95 | $22.49 | |
|
Traditional No Longer Available |
Gold | As Shown | 36-128-2 | $24.95 | $22.49 |
No Longer Available |
|
Traditional No Longer Available |
Gold | Opposite | 36-129-2 | $24.95 | $22.49 |
No Longer Available |
| Ellipse | Gold | As Shown | 36-128-87E | $24.95 | $22.49 | |
| Ellipse | Gold | Opposite | 36-129-87E | $24.95 | $22.49 | |
|
Traditional Available only while supplies last |
White | As Shown | 36-128-3 | $24.95 | $22.49 |
No Longer Available |
|
Traditional Available only while supplies last |
White | Opposite | 36-129-3 | $24.95 | $22.49 | |
| Ellipse | White | As Shown | 36-128-3E | $24.95 | $22.49 | |
| Ellipse | White | Opposite | 36-129-3E | $24.95 | $22.49 |
|

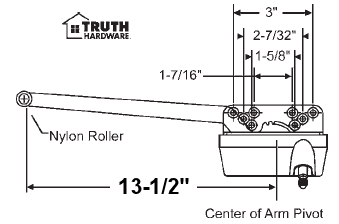

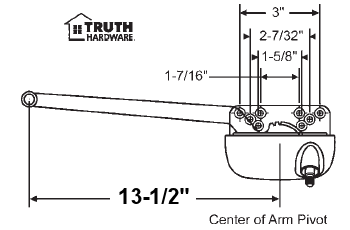

Truth Single Arm Operator with 13-1/2" Arm |
|
Traditional Style Case (available only while supplies last) |
Ellipse Style Case |
|
|
|
|
|
|
Please note: Truth Hardware has discontinued their 15 Series "Traditional Style Case" Window Operators. They can be replaced by the "Ellipse Style Case" which is a direct replacement. Only difference is the case design. Traditional Style Case are available only whiles supplies last. |
| Case Style | Color |
Version |
Item # |
Price (1-11) |
Price (12-up) |
Purchase On-line |
|---|---|---|---|---|---|---|
|
Traditional No Longer Available |
Bronze |
As Shown |
36-152-1 |
|
No Longer Available |
|
|
Traditional No Longer Available |
Bronze |
Opposite |
36-154-1 |
No Longer Available |
||
| Ellipse | Bronze | As Shown | 36-152-1E | $24.95 | $22.49 | |
| Ellipse | Bronze | Opposite | 36-154-1E | $24.95 | $22.49 | |
|
Traditional No Longer Available |
Gold | As Shown | 36-152-2 | $24.95 | $22.49 |
No Longer Available |
|
Traditional No Longer Available |
Gold | Opposite | 36-154-2 | No Longer Available | ||
| Ellipse | Gold | As Shown | 36-152-87E | $24.95 | $22.49 | |
| Ellipse | Gold | Opposite | 36-154-87E | $24.95 | $22.49 | |
|
Traditional No Longer Available |
White | As Shown | 36-152-3 | $24.95 | $22.49 |
No Longer Available |
|
Traditional No Longer Available |
White | Opposite | 36-154-3 | No Longer Available | ||
| Ellipse | White | As Shown | 36-152-3E | $24.95 | $22.49 | |
| Ellipse | White | Opposite | 36-154-3E | $24.95 | $22.49 |
|
Popular Track options for these operators |
|
|
|
|
|
|
 |
 |
 |
|
Description |
Item # |
Price (1-6) |
Price (7-24) |
Price (25-up) |
Purchase On-line |
|---|---|---|---|---|---|
|
Truth Track |
38-53 |
$3.98 | $3.75 | Call | |
|
Truth Track (stainless steel) |
38-53CG |
$9.30 | $8.85 | Call | |
|
Truth Track |
38-55 | $4.49 | $4.25 | Call | |
|

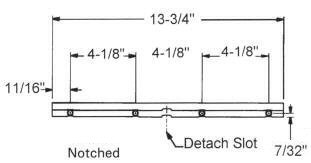

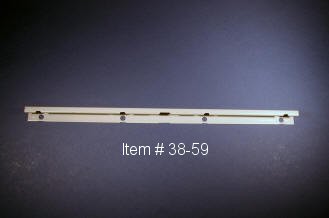

Truth Track |
38-59 | $3.98 | $3.75 | Call |
Orders less than $25 incur a $5 small order handling fee. | Sorry, we only accept orders from and ship within the USA.
Please order carefully as items authorized for return incur a 25% restocking fee.
