70 Series Spiral Window Balances &
Accessories
|
5/8" Non-Tilt Tube Balance
(actually 9/16" tube diameter, but considered 5/8" in the Trade)
|
|
 |
-
Metal Tube
-
Maximum tube balance length
available is 60"
-
White, red and blue bearings are
for sashes weighing up to 30 lbs; the black bearing with the nyclad tip is for
sashes weighing up to 40 lbs.
-
In most cases red bearing can be
used in place of white bearing. Please call us for availability of white
bearing balances.
-
Optional
tensioning tools
|
|
How to
order
-
Identify color of nylon bearing (white,
red, blue or black)
-
Measure metal tube length. (Do
not include nylon bearing)
-

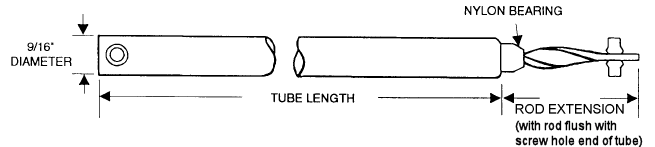

Measure rod extension (as shown in
diagram above) with rod flush with screw hole end of tube.
Note: there are two possible rod
extension lengths per tube length.
-
Only our most popular combinations can be
chosen below for on-line purchase. For all others, please call us
at
800-992-4282 to inquire about cost and availability.
-
To order more than one combination
on-line, just
return to this page and choose another combination. Then add it to
your shopping cart.
-
Please order carefully as window balances are
custom made and are non-returnable.
In most cases, these balances take us about 1 week to receive before
shipping to you.
|
|
Choose color of nylon bearing |
Price
(1-6)
|
Price
(7-24) |
Price
(25-up) |
Purchase On-line
(or call 800-992-4282)
|
|
Red |
$13.95 |
$8.95 |
Call |
|
|
Blue |
$13.95 |
$8.95 |
Call |
|
|
Black |
$15.95 |
$10.95 |
Call |
|
|
70 Series Balance Tensioning Tools |
|
 |
 |
|
|
|
Description |
Item # |
Price
|
Purchase On-line
(or call 800-992-4282)
|
| Balance
Tensioning Tool |
70-515 |
$6.95 |
|
|
