Secondary Patio Door Lock

Truth Secondary Patio Door Lock

• Spring loaded and foot operated, this sturdy device easily engages to provide a more secure door and has a push button release.

• Has been tested to withstand a forced entry attempt of 400 lbs of force.

• Lock has an acetal body, release lever and button with a 5/16" O. D. steel bolt.

• Lock available in 2 styles.

• 2 Keeper styles available.

Mounting

• Mounts to bottom rail of sliding door and engages into sill, or into the face of the stationary door.  (see Mounting Positions A

          and B)

• May require drilling of hole(s) for steel bolt to engage depending on mounting method.

• Mounting fasteners not included.

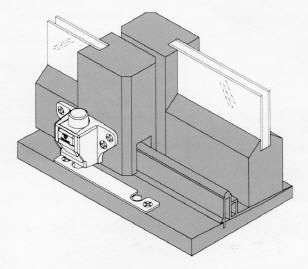

Mounting Position A

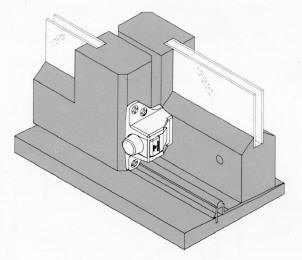

Mounting Position B

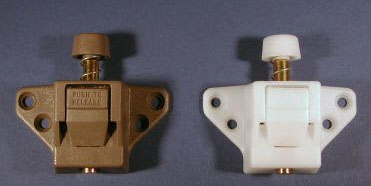

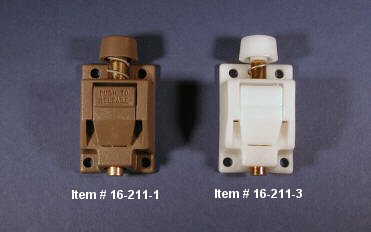

Two Locks Styles Available

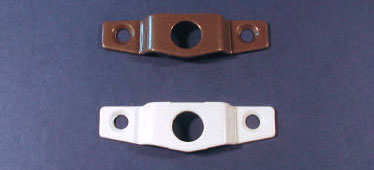

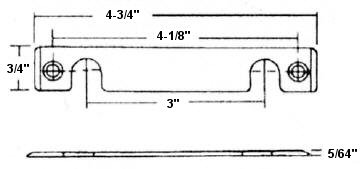

Two Keeper Styles Available

Truth Secondary Patio Door Lock

Bronze

16-209-1

White

Bronze

White
