Elmdor DWB Series Dry Wall Bead Access Doors

Elmdor DWB Series Dry Wall Bead Access Doors

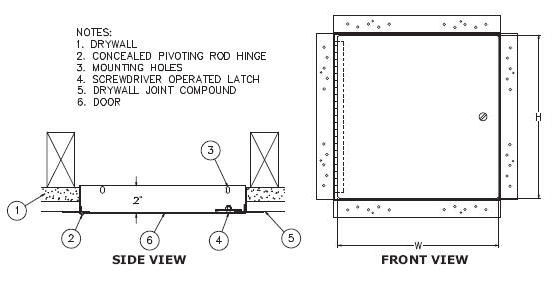

Side and Front view drawing of Elmdor DWB Series Dry Wall Bead Access Doors

Access Door with Screwdriver Latch

Access Door with Screwdriver Latch shown

  • Not Fire Rated

  • Doors are designed for flush installation in dry wall surfaces.  Door features a concealed hinge that prevents distortion and closes door squarely.

  • Door and Frame are fabricated from 16 gage, galvannealed steel with a prime coat finish

  • Frame has 1/4" mounting holes positioned to allow anchoring directly to studs to assure a secure mounting.  A drywall bead on the frame allows the drywall joint compound to be applied over the bead at the same time as the joints and corners.

  • Flange has prepunched holes to provide grip for the joint compound and facilitate fastening the flange to framing members with drywall screws.

  • Concealed Pivoting Rod Hinge prevents distortion and closes door squarely.  Doors 24" or larger are provided with a continuous piano hinge.

  • 2 Latch options available: Screw Driver Latch or Cylinder Lock (one per door) with 2 keys

  • Finish is a prime coat suitable for painting

  • Dimensions are subject to manufacturer's tolerance of plus or minus 1/4"

Nominal Door Size

Wall Opening

Latch Type

Item #

Price

Purchase On-line

Elmdor Access Door

8"W x 8"H

8-1/4"W x 8-1/4"H 1 Screwdriver Latch DWB8X8PC-SDL

Call For Pricing 1-800-992-4282

Elmdor Access Door

8"W x 8"H

8-1/4"W x 8-1/4"H 1 Cylinder Lock DWB8X8PC-CL

Call For Pricing 1-800-992-4282

Elmdor Access Door

10"W x 10"H

10-1/4"W x 10-1/4"H 1 Screwdriver Latch DWB10X10PC-SDL

Call For Pricing 1-800-992-4282

Elmdor Access Door

10"W x 10"H

10-1/4"W x 10-1/4"H 1 Cylinder Lock DWB10X10PC-CL

Call For Pricing 1-800-992-4282

Elmdor Access Door

12"W x 12"H

12-1/4"W x 12-1/4"H 1 Screwdriver Latch DWB12X12PC-SDL

Call For Pricing 1-800-992-4282

Elmdor Access Door

12"W x 12"H

12-1/4"W x 12-1/4"H 1 Cylinder Lock DWB12X12PC-CL

Call For Pricing 1-800-992-4282

Elmdor Access Door

14"W x 14"H

14-1/4"W x 14-1/4"H 1 Screwdriver Latch DWB14X14PC-SDL

Call For Pricing 1-800-992-4282

Elmdor Access Door

14"W x 14"H

14-1/4"W x 14-1/4"H 1 Cylinder Lock DWB14X14PC-CL

Call For Pricing 1-800-992-4282

Elmdor Access Door

16"W x 16"H

16-1/4"W x 16-1/4"H 1 Screwdriver Latch DWB16X16PC-SDL

Call For Pricing 1-800-992-4282

Elmdor Access Door

16"W x 16"H

16-1/4"W x 16-1/4"H 1 Cylinder Lock DWB16X16PC-CL

Call For Pricing 1-800-992-4282

Elmdor Access Door

18"W x 18"H

18-1/4"W x 18-1/4"H 3 Screwdriver Latches DWB18X18PC-SDL

Call For Pricing 1-800-992-4282

Elmdor Access Door

18"W x 18"H

18-1/4"W x 18-1/4"H 1 Cylinder Lock & 2 Screwdriver Latches DWB18X18PC-CL

Call For Pricing 1-800-992-4282

Elmdor Access Door

22"W x 22"H

22-1/4"W x 22-1/4"H 4 Screwdriver Latches DWB22X22PC-SDL

Call For Pricing 1-800-992-4282

Elmdor Access Door

22"W x 22"H

22-1/4"W x 22-1/4"H 1 Cylinder Lock & 3 Screwdriver Latches DWB22X22PC-CL

Call For Pricing 1-800-992-4282

Elmdor Access Door

24"W x 24"H

24-1/4"W x 24-1/4"H 3 Screwdriver Latches DWB24X24PC-SDL

Call For Pricing 1-800-992-4282

Elmdor Access Door

24"W x 24"H

24-1/4"W x 24-1/4"H 1 Cylinder Lock & 2 Screwdriver Latches DWB24X24PC-CL

Call For Pricing 1-800-992-4282

AMSCO is an Elmdor Access Door dealer.
